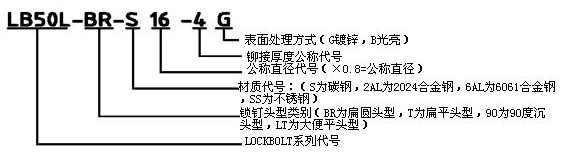

鉚釘規格表：
| 鉚釘桿徑 | 代號 | A | 扁圓頭型（LB50LB） | 扁平頭型（LB50LT） | 沉頭型（LB50L90） | |||||||||
| B | C | B | C | B | C | |||||||||
| 最小 | 最大 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |||||||
| 13（1/2") | 16 | 12.52 | 13.08 | 23.42 | 7.94 | 23.42 | 5.95 | 23.02 | 6.35 | |||||
| 16（5/8") | 20 | 15.67 | 16.31 | 28.97 | 9.92 | 28.97 | 7.54 | 29.37 | 7.94 | |||||
| 19（3/4") | 24 | 18.82 | 19.51 | 34.93 | 11.91 | 34.93 | 9.13 | 34.93 | 9.53 | |||||
| 22（7/8'') | 28 | 22.00 | 22.73 | 40.48 | 13.89 | 40.48 | 10.32 | 40.48 | 11.11 | |||||
| 25（1'') | 32 | 25.15 | 25.96 | 46.43 | 15.48 | 46.43 | 11.91 | 46.83 | 12.70 | |||||
| 28（9/8'') | 36 | 27.89 | 29.18 | 52.39 | 17.46 | |||||||||
單位：MM
代號 | 鉚接范圍 | 13（1/2")-16 | 16（5/8")-20 | 19（3/4")-24 | 22（7/8")-28 | 25（１")-32 | 28(9/8")-36 | |||||||
NO. | 最小 | 最大 | D±0.6 | E+3.0/-1.5 | D±0.6 | E+3.0/-1.5 | D±0.6 | E+3.0/-1.5 | D±0.6 | E+3.0/-1.5 | D±0.6 | E+3.0/-1.5 | D±0.6 | E+3.0/-1.5 |
4 | 6.35 | 12.7 | 30.81 | 80.57 | 36.4 | 92.87 | 38.56 | 105.57 |
|
|
|
|
|
|
8 | 12.7 | 19.05 | 37.16 | 86.92 | 42.75 | 99.22 | 44.91 | 111.92 | 48.79 | 119.06 | 52.65 | 136.53 |
|
|
12 | 19.05 | 25.4 | 43.51 | 93.27 | 49.1 | 105.57 | 51.26 | 118.27 | 55.14 | 125.41 | 59 | 142.88 |
|
|
16 | 25.4 | 31.75 | 49.86 | 99.62 | 55.45 | 111.92 | 57.61 | 124.62 | 61.49 | 131.76 | 65.35 | 149.23 |
|
|
20 | 31.75 | 38.1 | 56.21 | 105.97 | 61.8 | 118.27 | 63.96 | 130.97 | 67.84 | 138.11 | 71.7 | 155.58 |
|
|
24 | 38.1 | 44.45 | 62.56 | 112.32 | 68.15 | 124.62 | 70.31 | 137.32 | 74.19 | 144.46 | 78.05 | 161.93 |
|
|
28 | 44.45 | 50.8 | 68.91 | 118.67 | 74.5 | 130.97 | 76.66 | 143.67 | 80.54 | 150.81 | 84.4 | 168.28 |
|
|
32 | 50.8 | 57.15 | 75.26 | 125.02 | 80.85 | 137.32 | 83.01 | 150.02 | 86.89 | 157.16 | 90.75 | 174.63 |
|
|
36 | 57.15 | 63.5 | 81.61 | 131.37 | 87.2 | 143.67 | 89.36 | 156.37 | 93.24 | 163.51 | 97.1 | 180.98 |
|
|
40 | 63.5 | 69.85 | 87.96 | 137.72 | 93.55 | 150.02 | 95.71 | 162.72 | 99.59 | 169.86 | 103.45 | 187.33 |
|
|
44 | 69.85 | 76.2 | 94.31 | 144.07 | 99.9 | 156.37 | 102.06 | 169.07 | 105.94 | 176.21 | 109.8 | 193.68 |
|
|
48 | 76.2 | 82.55 | 100.66 | 150.42 | 106.25 | 162.72 | 108.41 | 175.42 | 112.29 | 182.56 | 116.15 | 200.03 |
|
|
52 | 82.55 | 88.9 | 107.01 | 156.77 | 112.6 | 169.07 | 114.76 | 181.77 | 118.64 | 188.91 | 122.5 | 206.38 |
|
|
56 | 88.9 | 95.25 | 113.36 | 163.12 | 118.95 | 175.42 | 121.11 | 188.12 | 124.99 | 195.26 | 128.85 | 212.73 | 133.35 | 217.49 |
60 | 95.25 | 101.6 | 119.71 | 169.47 | 125.3 | 181.77 | 127.46 | 194.47 | 131.34 | 201.61 | 135.2 | 219.08 | 139.7 | 223.84 |
64 | 101.6 | 107.95 | 126.06 | 175.82 | 131.65 | 188.12 | 133.81 | 200.82 | 137.69 | 207.96 | 141.55 | 225.43 | 146.05 | 230.19 |
68 | 107.95 | 114.3 | 132.41 | 182.17 | 138 | 194.47 | 140.16 | 207.17 | 144.04 | 214.31 | 147.9 | 231.78 | 152.4 | 236.54 |
72 | 114.3 | 120.65 | 138.76 | 188.52 | 144.35 | 200.82 | 146.51 | 213.52 | 150.39 | 220.66 | 154.25 | 238.13 | 158.75 | 242.89 |
76 | 120.65 | 127 | 145.11 | 194.87 | 150.7 | 207.17 | 152.86 |
|
|
| 160.6 | 244.48 | 165.1 | 249.24 |
80 | 127 | 133.35 | 151.46 |
|
|
|
|
|
|
| 166.95 | 250.83 | 171.45 | 255.59 |
84 | 133.35 | 139.7 |
|
|
|
|
|
|
|
| 173.3 | 257.18 | 177.8 | 261.94 |
88 | 139.7 | 146.05 |
|
|
|
|
|
|
|
| 179.65 | 263.53 | 184.15 | 268.29 |
92 | 146.05 | 152.4 |
|
|
|
|
|
|
|
| 186 | 269.88 | 190.5 | 274.64 |
單位：MM
機械性能表：
鉚釘桿徑 | 代號 | 材質配備 | 6061合金鋁 | 2024合金鋁 | 合金鋼 | 不繡鋼 |
13（1/2") | 16 | 剪切力 | 24041 | 33113 | 65318 | 63050 |
抗拉力 | 22226 | 35608 | 77339 | 77339 | ||
鉚套夾緊力 | 19958 | 26762 | 54659 | 54659 | ||
16（5/8") | 20 | 剪切力 | 37649 | 51710 | 102060 | 95256 |
抗拉力 | 34791 | 55793 | 122926 | 122926 | ||
鉚套夾緊力 | 31298 | 41731 | 87091 | 87091 | ||
19（3/4'') | 24 | 剪切力 | 53978 | 74390 | 146966 | 137441 |
抗拉力 | 50077 | 80287 | 181894 | 181894 | ||
鉚套夾緊力 | 45133 | 60329 | 128822 | 128822 | ||
22（7/8") | 28 | 剪切力 |
|
| 196862 |
|
抗拉力 |
|
| 251521 |
| ||
鉚套夾緊力 |
|
| 178038 |
| ||
25（1") | 32 | 剪切力 |
|
| 256284 |
|
抗拉力 |
|
| 329767 |
| ||
鉚套夾緊力 |
|
| 233604 |
| ||
28（9/8") | 36 | 剪切力 |
|
| 315252 |
|
抗拉力 |
|
| 376261 |
| ||
鉚套夾緊力 |
|
| 265129 |
|
單位：N
